CADS Rebar Extensions for Revit
A library of detailing tools for common structural elements.
Introduction
Automatically generate reinforcement for a range of standard concrete structures such as beams, columns, footings, pile caps, piles, retaining walls, slab corners & walls.
Simple to use: select the structural concrete elements to be reinforced, launch the appropriate tool, or select the automatic generation tool. Specify the parameters to be used when reinforcing the structure. Supported concrete elements include beams, columns, continuous footings, parapets, pile caps, concrete piles, retaining walls, slab corners, slab openings, spread footings, wall corners, and walls.
Just £495 for a 12 month subscription. Click below to get started today!
Familiar Technology
The Rebar Extensions were originally developed by Autodesk® but due to their close partnership with CADS, they have asked us to develop and maintain the extensions. These extensions work with CADS RC3D for Revit which is a Revit extension designed to enhance the placement, annotation, and bar marking of reinforcing steel in all kinds of RC structures.
Reinforcement Structure Examples
Features
Automatic Reinforcement Generation

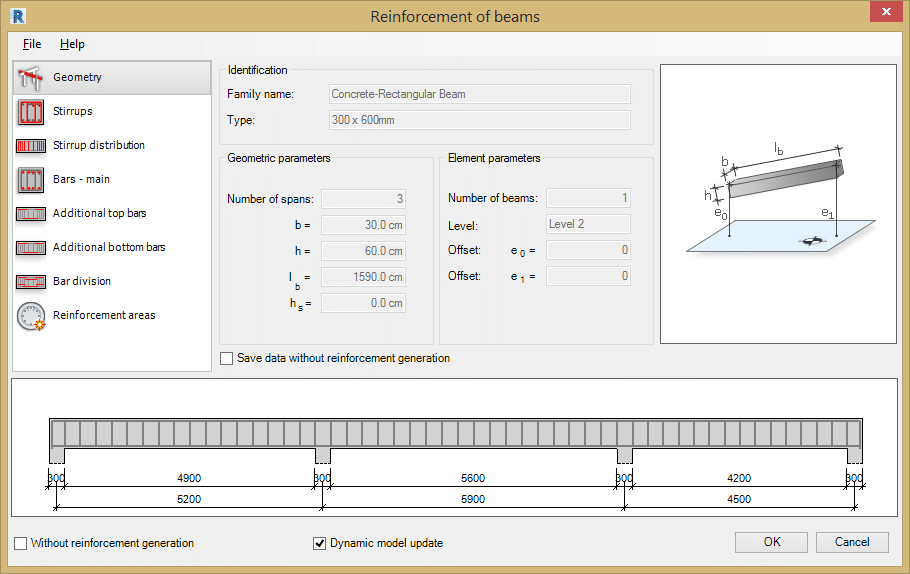

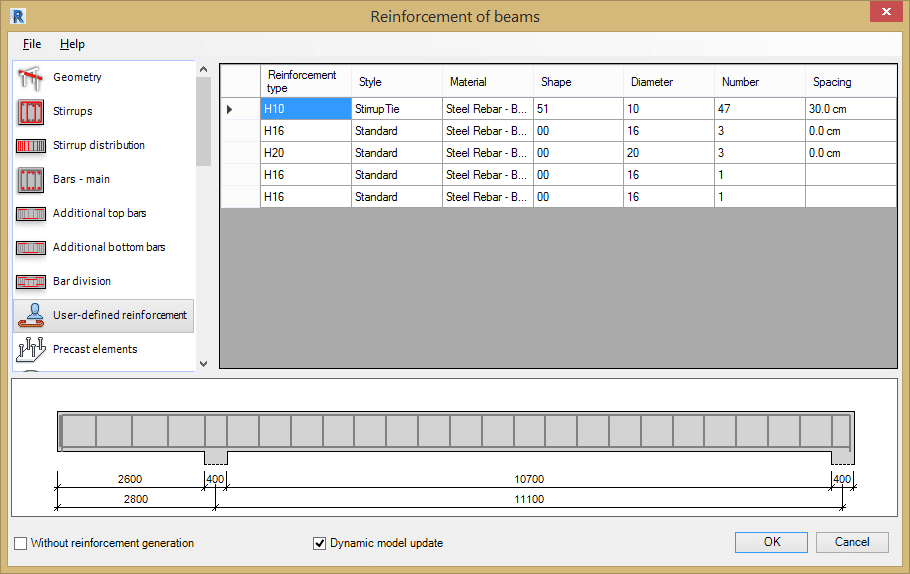

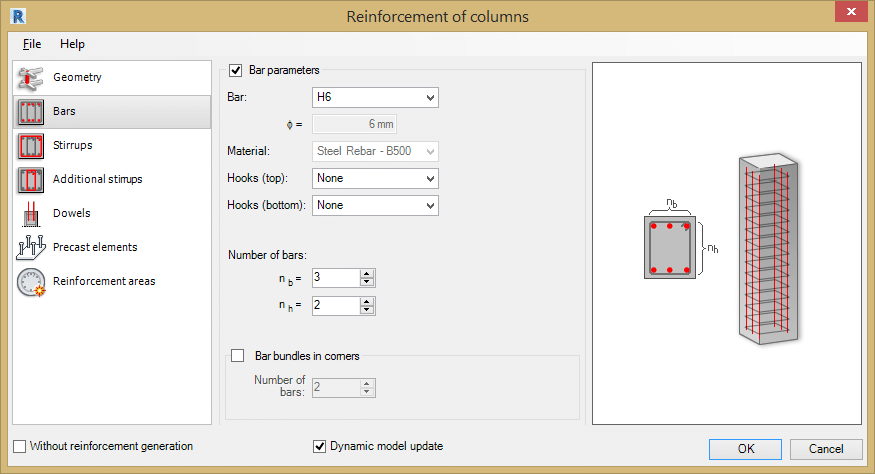

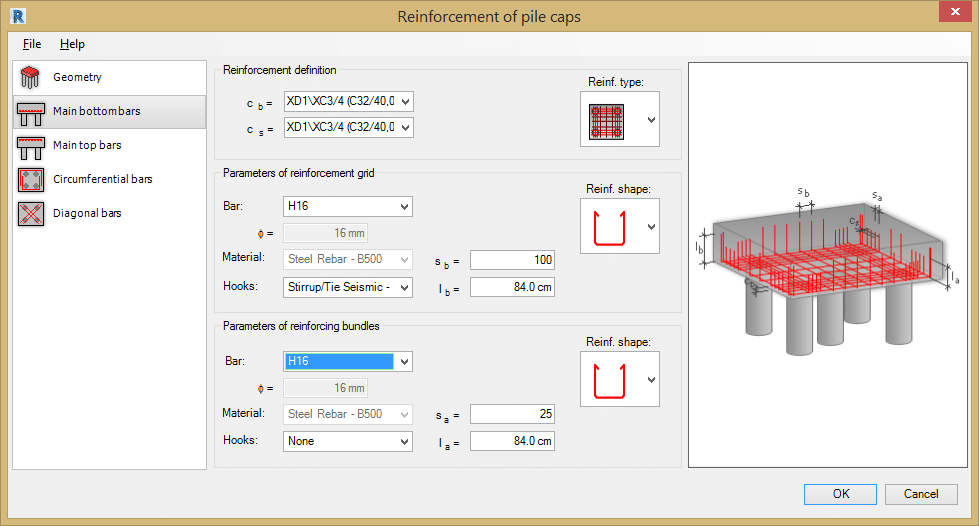

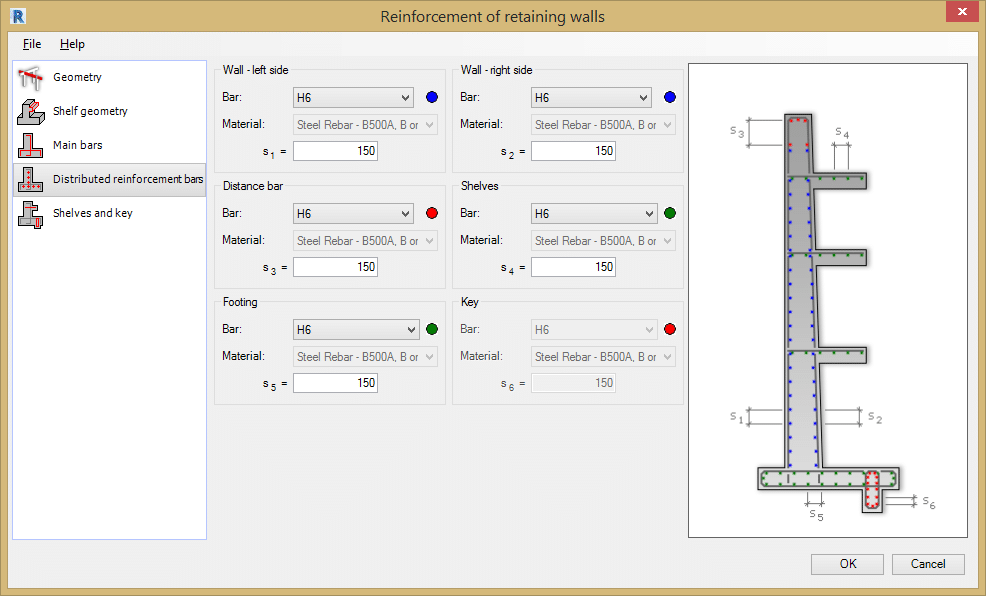

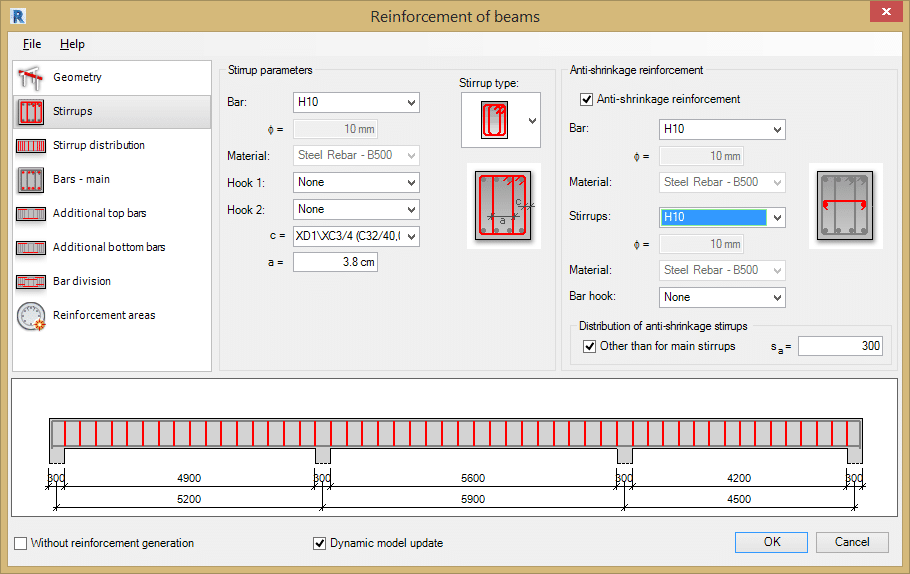

- Automatically generate reinforcement using the Extension Tools for a range of standard concrete structures. Select the structural concrete elements to be reinforced, launch the appropriate tool, or select the automatic generation tool. Specify the parameters to be used when reinforcing the structure. Supported concrete elements include Beams, Columns, Continuous Footings, Parapets, Pile caps, Concrete Piles, Retaining Walls, and Spread Footings.
Additional Detailer Functions
- Generate reinforcement for openings and corners of reinforced concrete slabs.
- The wall corner tool allows the user to quickly generate reinforcement for the corners and intersections of reinforced concrete walls defined in the model.
Reinforcement Clash Detection
- Perform an analysis of rebar clashes that exist in a reinforced concrete structure model.
Rebar Extensions is part of the RC3D Suite. See here for more details
“During our trial with Revit 2024, we found your plug‑in extremely useful, as it has significantly reduced our working time and improved efficiency.”
Ricardo Urakami, BIM Project Engineer
Request your quotation for CADS Rebar Extensions for Autodesk Revit – TODAY!
Contact us for your quotation today. We are happy to explain the functionality of this incredibly useful Rebar Extensions tool to you. Automatically generating reinforcement for concrete structures is just a few clicks away!
